Voltmeter-Ammeter DSN-VC288
Original price was: ₹290.00.₹185.00Current price is: ₹185.00.
1 in stock
Features of VC288
- Working voltage of Meter itself : DC 4 – 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
- Working current of Meter itself : =20mA
- Voltage Measuring range : DC 0 – 100V
- Current Measuring range : DC 0 – 100A
- Voltage resolution (V) : 0.1V
- Current resolution (A) : 0.1A (Measuring current<10A), 1A (Measuring current>=10A)
- Measure accuracy : 0.1% (± 1 digit)
- Display : 0.28″ digital tube, Two color blue and red
- Refresh rate : about 300mS / times

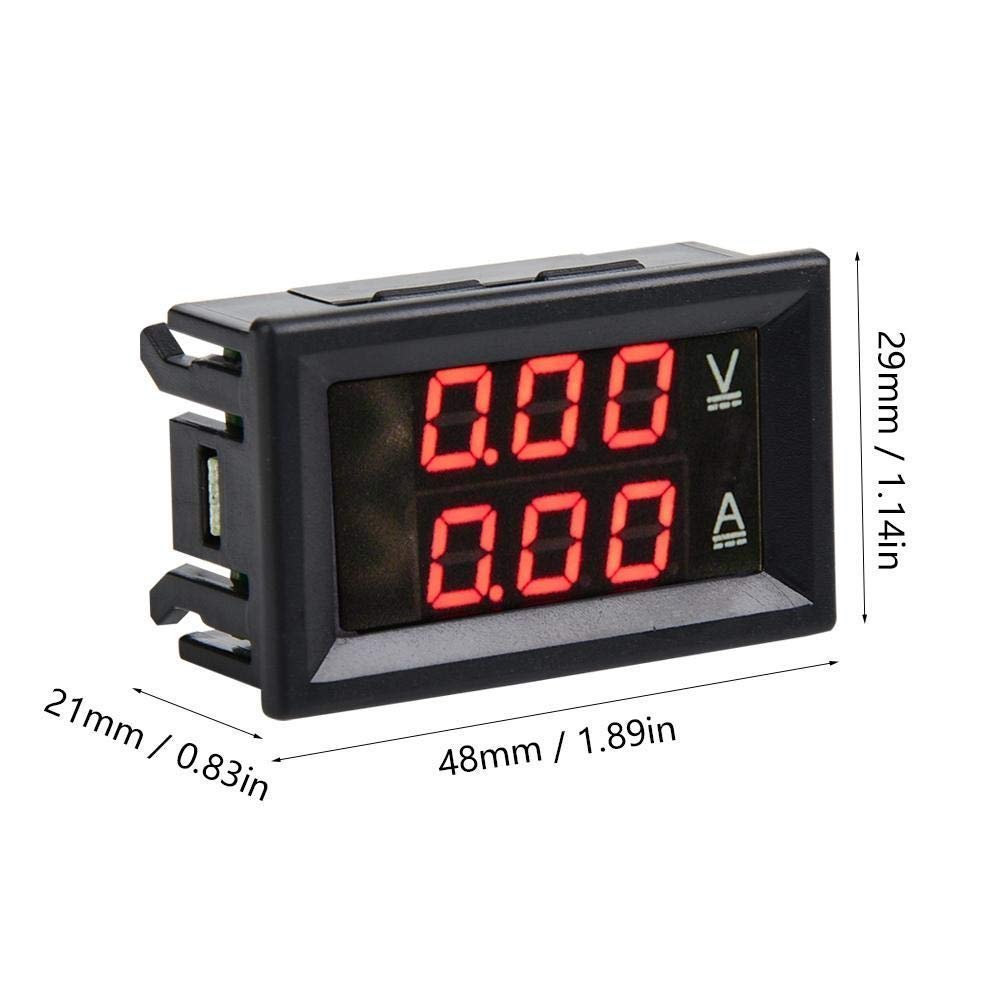

- Dimensions : 48mm*29mm*26mm
- Operation Temp : -10oC- 65oC
-
Free Shipping
For all orders over ₹699 -
1 & 5 Returns
Cancellation till 1 day -
Secure Payment
100% secure payments
This is DSN-VC288 LED Digital Ammeter–Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution.

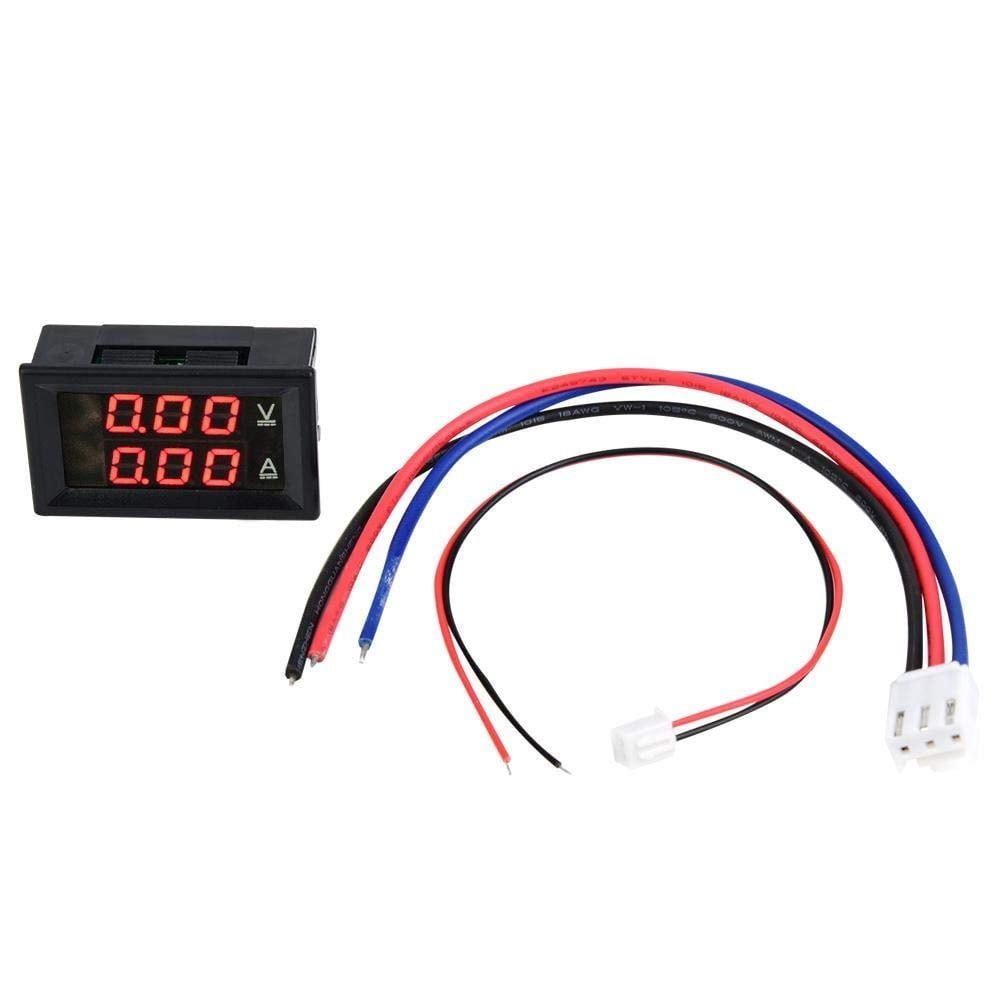

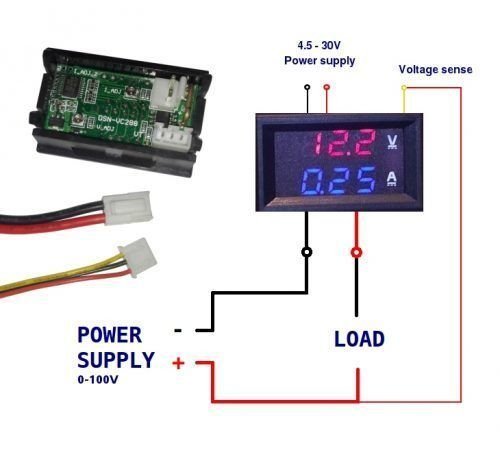

This can be supplied anywhere from 4 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
- It measures up to 100V and 100A DC.
- Very handy and small in size.
- It requires a power supply of 4-30V Max.
- 100% Brand new and high quality.
