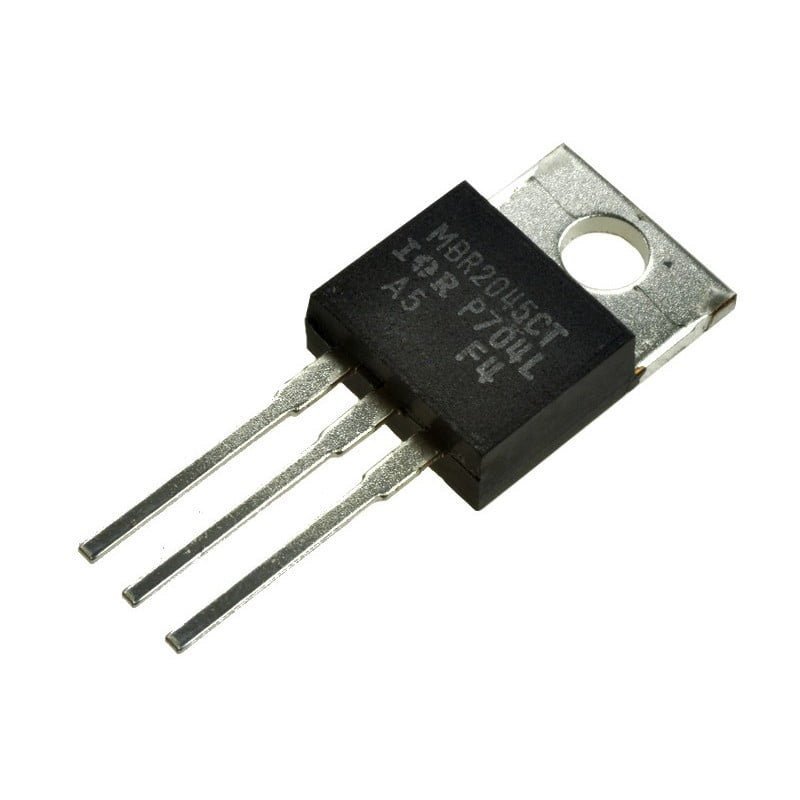

MBR2045 Schottky Diode (Pack of 5)
Original price was: ₹450.00.₹199.00Current price is: ₹199.00.
8 in stock
• Plastic material
• Metal silicon junction, majority carrier conduction
• Low power loss, high efficiency
• High current capability, low forward voltage drop
• High surge capability
• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
• Guardring for over voltage protection
• High temperature soldering guaranteed: 260°C/10 seconds, 0.25 inch (6.35mm) from case.
Specifications
| Model | MBR2045 |
| Package | TO-220AB |
| DC blocking Voltage | 45V |
| Instantaneous Forward Voltage | 0.57V |
| Average Rectified Forward Current | 20A |
| Operating Temperature | 65 to 150° C |
-
Free Shipping
For all orders over ₹699 -
1 & 5 Returns
Cancellation till 1 day -
Secure Payment
100% secure payments
Description
MBR2045 is a Schottky barrier rectifier, Its operating current is 20A, and the voltage is 45V. It’s highly efficient and has low power loss. As a rectifier is used to rectify the signal, a rectifier is used to convert the AC signal to the DC signal. Schottky barrier rectifier (or Schottky diode) operates similarly to a typical semiconductor diode made from Si or Ge. However, its primary purpose is to provide rectification, i.e., allow current to flow only easily along one specific direction. This diode has vast applications for managing the power system, power supply system, Output rectification and other instruments.
Features:
- Low Forward Voltage
- Low Power Loss / High Efficiency
- High Surge Capacity
- 175°C Operating Junction Temperature
- 20 A Total (10 A Per Diode Leg)
- These Devices are Pb−Free and are RoHS Compliant
