Original price was: ₹250.00.₹145.00Current price is: ₹145.00.
Out of stock
Nex Electronic: Simple Solution For Complex Connections
QUICK VIEW:
Product description Below

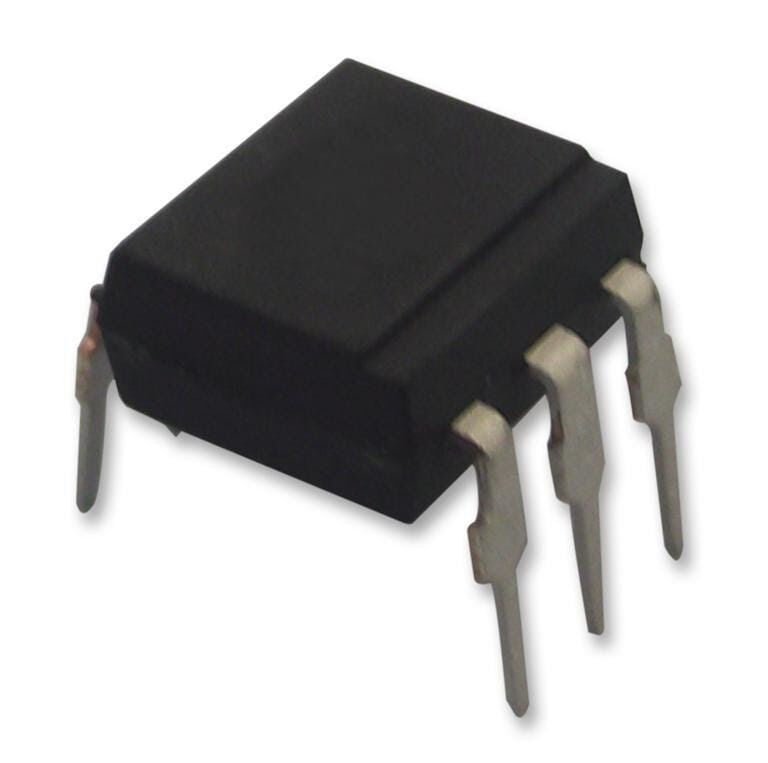

NumberofChannels: 1
IsolationVoltage-Max: 5000 V
OutputVoltage-Max: 30 V
CTRMin: 20%
OperatingTemperature-Max: 100 ?C
LM339
Quick View :
1. Input: 2 to 36 VDC or 1 to 18 VDC.
2. Very Low Supply Current Drain (0.8 mA).
3. Low Input Biasing Current: 25 nA.
4. Low Input Offset Current: 5 nA.
Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
Buffered inputs and outputs
Standardized symmetrical output characteristics
Maximum input current of 1 ?A at 18 V over-full package temperature range; 100 nA at 18 V and 25?C
100% tested for quiescent current at 20 V
5-V, 10-V, and 15-V parametric ratings
Noise margin (over full package temperature range:
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 at VDD = 15 V
7812/1A
Quick View :
1. Versatile, High-Accuracy, Fixed Voltage Regulators
2. Suitable for Currents up to 1A
3. Internal Thermal Overload Protection
4. Internal Short-Circuit Current Limit
5. Output Voltage Tolerance 4%
Output Voltage: 3.3V
Space Saving SOT-223 Package
Current Limiting and Thermal Protection
Output Current 800mA
Line Regulation 0.2% (Max)
Load Regulation 0.4% (Max)
Temperature Range: 0?C to 125?C
? Internally Frequency Compensated for Unity Gain
? Large DC Voltage Gain 100 dB
? Wide Bandwidth (Unity Gain) 1 MHz (Temperature Compensated)
? Wide Power Supply Range: ? Single Supply 3 V to 32 V ? or Dual Supplies ?1.5 V to ?16 V
? Very Low Supply Current Drain (700 ?A) ?Essentially Independent of Supply Voltage
? Low Input Biasing Current 45 nA (Temperature Compensated)
? Low Input Offset Voltage 2 mV and Offset Current: 5 nA
? Input Common-Mode Voltage Range Includes Ground
? Differential Input Voltage Range Equal to the Power Supply Voltage
? Large Output Voltage Swing 0 V to V ? 1.5 V
? High reverse voltage to 1000V
? Surge overload ratings to 50 amperes peak
? Good for printed circuit board assembly
7824/24V
Quick View :
1. Output voltage: 24V.
2. Max input voltage: 35V.
3. Max output current: 1.5A.
4. Quiescent (standby) current: 5mA.
