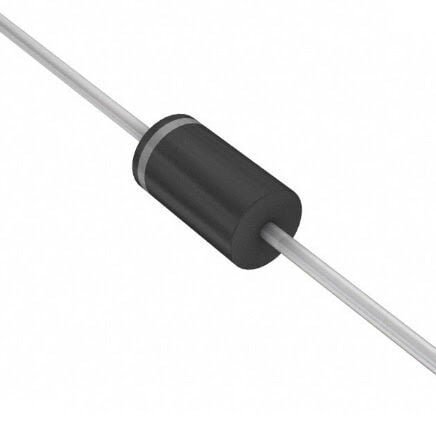

1N5819 DIODE (Pack of 5)

Mechanical Characteristics:-

? Case: Epoxy, Molded

? Weight: 0.4 Gram (Approximately)

? Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

? Lead Temperature for Soldering Purposes: 260?C Max for 10 Seconds

? Polarity: Cathode Indicated by Polarity Band

? ESD Ratings: Machine Model = C (>400 V) Human Body Model = 3B (>8000 V)

Specification:-
Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 40 V
VRWM Working Peak Reverse Voltage 40 V
VR DC Blocking Voltage 40 V
VR(RMS) RMS Reverse Voltage 28 V
VRSM Non?Repetitive Peak Reverse Voltage 48 V
IO Average Rectified Output Current 1 A
IFSM Non-Repetitive Peak Forward Surge Current 25 A
TJ Operating Junction Temperature Range ? 65 to 125 ?C
Tstg Storage Temperature Range ? 65 to 150 ?C
